Product Description

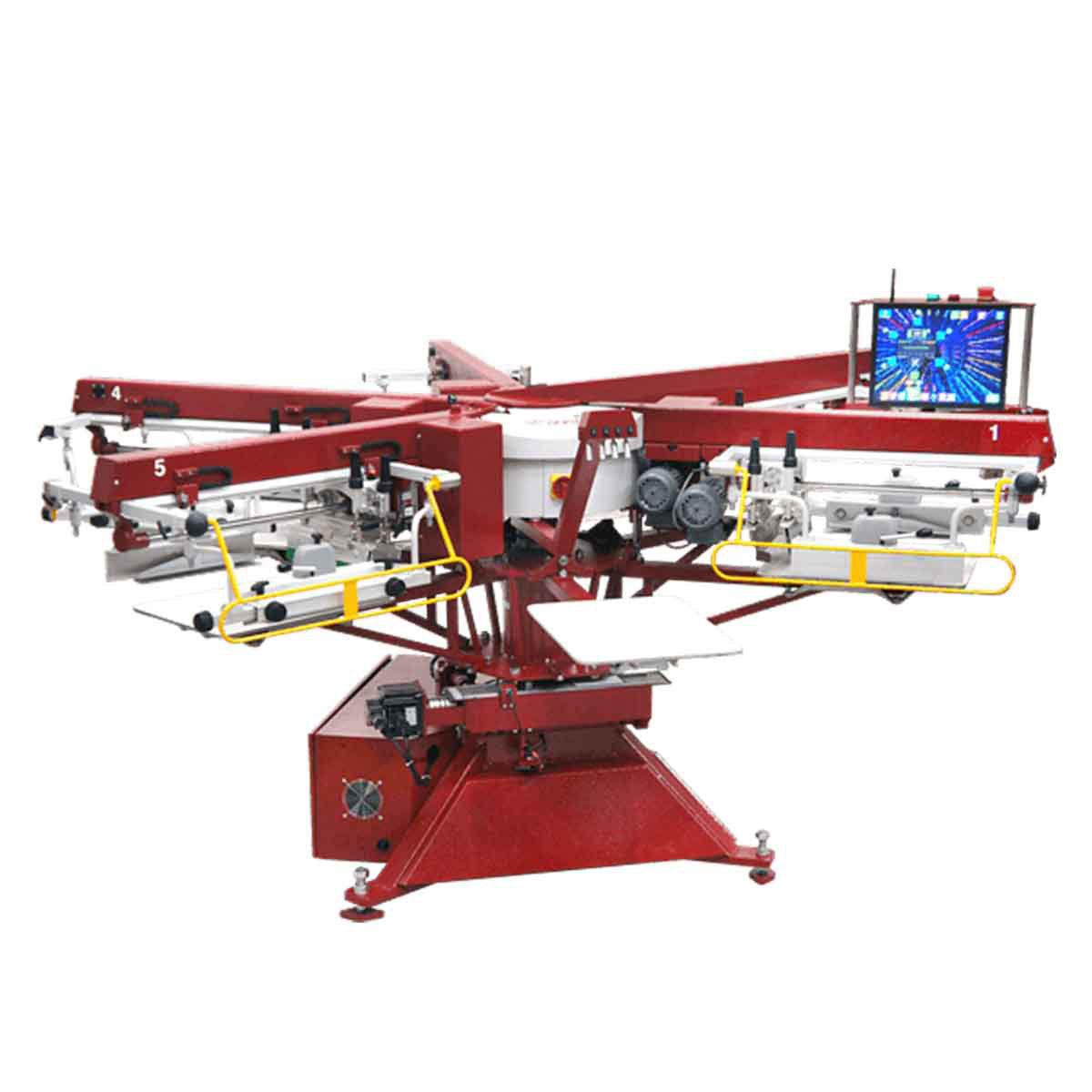

The VOLT S electric screen printing press is perfect if you need a t-shirt screen printing machine with a small footprint. It is ideal for small print shops transitioning to a first automatic press, as well as large shops that need a smaller press to expand production capacity. While small in size, there is nothing small about the VOLT S when it comes to performance, reliability and features. The 15" x 16" print area will meet the demands of most print jobs. The 21" x 28" maximum screen size will accommodate most of your existing screens.

The VOLT S electric screen printing machine offers the advanced features of our top of the line presses, like servo lift and indexing, electric print heads, digital off-contact and a 15" touchscreen on a flexible boom that can be turned to face any station. Like all VOLTs, there's no compressor or chiller needed, which means less maintenance, more ease of use and smooth, quiet operation.

Stations
Colors
Maximum
Print Area
Maximum
Screen Size
Standard
Pallet Size
Press
Diameter
Touchscreen Support Electrical Requirements
06/02 15" x 16"
38.1cm x 40.6cm
21" x 28"
54cm x 71cm
16" x 22"
41cm x 56cm
9' 4" Boom 1 ph 208/230v, 50/60 Hz, 16A
3 ph 208/230v, 50/60 Hz, 9A
06/03 15" x 16"
38.1cm x 40.6cm
21" x 28"
54cm x 71cm
16" x 22"
41cm x 56cm
9' 4" Boom 1 ph 208/230v, 50/60 Hz, 17A
3 ph 208/230v, 50/60 Hz, 10A
06/04 15" x 16"
38.1cm x 40.6cm
21" x 28"
54cm x 71cm
16" x 22"
41cm x 56cm
9' 4" Boom 1 ph 208/230v, 50/60 Hz, 18A
3 ph 208/230v, 50/60 Hz, 11A
06/05 15" x 16"
38.1cm x 40.6cm
21" x 28"
54cm x 71cm
16" x 22"
41cm x 56cm
9' 4" Boom 1 ph 208/230v, 50/60 Hz, 19A
3 ph 208/230v, 50/60 Hz, 12A
08/06 15" x 16"
38.1cm x 40.6cm
21" x 28"
54cm x 71cm
16" x 22"
41cm x 56cm
10' 2" Boom 1 ph 208/230v, 50/60 Hz, 20A
3 ph 208/230v, 50/60 Hz, 13A
08/07 15" x 16"
38.1cm x 40.6cm
21" x 28"
54cm x 71cm
16" x 22"
41cm x 56cm
10' 2" Boom 1 ph 208/230v, 50/60 Hz, 21A
3 ph 208/230v, 50/60 Hz, 14A
10/08 15" x 16"
38.1cm x 40.6cm
21" x 28"
54cm x 71cm
16" x 22"
41cm x 56cm
11' 2" Boom 1 ph 208/230v, 50/60 Hz, 31A
3 ph 208/230v, 50/60 Hz, 18A
10/09 15" x 16"
38.1cm x 40.6cm
21" x 28"
54cm x 71cm
16" x 22"
41cm x 56cm
11' 2" Boom 1 ph 208/230v, 50/60 Hz, 32A
3 ph 208/230v, 50/60 Hz, 19A
12/10 15" x 16"
38.1cm x 40.6cm
21" x 28"
54cm x 71cm
16" x 22"
41cm x 56cm
12' 4" Boom 1 ph 208/230v, 50/60 Hz, 36A
3 ph 208/230v, 50/60 Hz, 20A
12/11 15" x 16"
38.1cm x 40.6cm
21" x 28"
54cm x 71cm
16" x 22"
41cm x 56cm
12' 4" Boom 1 ph 208/230v, 50/60 Hz, 37A
3 ph 208/230v, 50/60 Hz, 21A
